Product Details

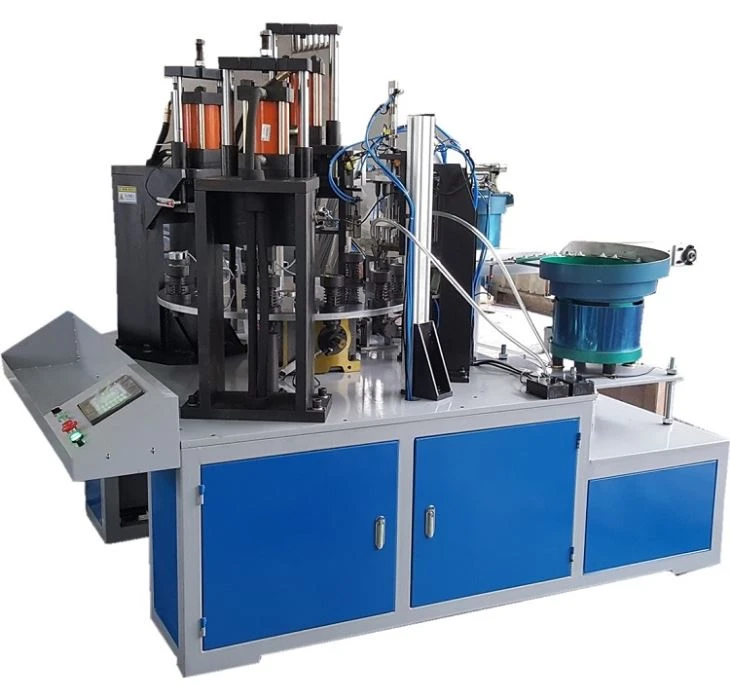

Solenoid assembly and riveting machine

Video links https://youtu.be/7OUaiBHoJbw



I. technical parameters

Efficiency: 1200pcs/H

Power supply: AC220V single-phase 50-60HZ

Source: 0.6Mpa

Machine: 1800*1300*1400mm (length x width x height)

Discharge: mechanical conveyor belt discharge


II. Description:

1. Adopt PLC control system, ensure that the system is stable and reliable, easy to operate.

2. Cam divider intermittent movement.

3. Step: vibration bowl feed down cover--robot arm clamp the cover into fixtures --mount screw—manually put into the product body--moves on to the next station and launch up cover-- automatic riveting --conveyor belt discharge

4. Automatic counting, production settings; using the touch screen, straightforward operation.

5. failure auto stop, alarm and display an error message.


未标题-1 - 副本.png


Hot Tags: solenoid assembly and riveting machine, China, manufacturers, suppliers, factory, buy, customized, made in China
